Question 1

Match the interface description on the left with the appropriate interface on the right.



Answer:

+ AP Manager: Used for Layer 3 communications between the Cisco WLC and the lightweight access points

+ Dynamic: Designed to be analogous to VLANs for wireless LAN client device

+ Management: This interface is the only consistently “pingable” in-band interface IP address on the Cisco WLC

+ Service Port: The only port that is active when the controller is in boot mode

+ Virtual: Used to support mobility management, DHCP relay and guest web authentication

Explanation

A WLC has one or more AP Manager Interfaces that are used for all Layer 3 communications between the WLC and the lightweight access points after the access point discovers the controller. The AP Manager IP address is used as the tunnel source for LWAPP packets from the WLC to the access point, and as the destination for LWAPP packets from the access point to the WLC. The AP Manager must have a unique IP address. Usually this is configured on the same subnet as the Management interface, but this is not necessarily a requirement. An AP Manager IP address is not pingable from outside the WLC. The use of multiple AP Manager Interfaces is discussed in the Advanced Deployment Concepts Section.

Dynamic Interfaces are created by users and are designed to be analogous to VLANs for wireless LAN client device. The WLC will support up to 512 Dynamic Interface instances. Dynamic Interfaces must be configured on a unique (to the WLC) IP network and VLAN. Each Dynamic Interface acts as a DHCP relay for wireless clients associated to wireless LANs mapped to the interface.

The Management interface is the default interface for in-band management of the WLC and connectivity to enterprise services such as AAA servers. If the service port is in use, the management interface must be on a different subnet from the service port. The management interface is also used for layer 2 communications between the WLC and access points. The Management interface is the only consistently “pingable” in-band interface IP address on the WLC.

The Service-port Interface is statically mapped by the system only to the physical service port. The service port interface must have an IP address on a different subnet from the Management, AP Manager, and any dynamic interfaces. The service port can get an IP address via DHCP or it can be assigned a static IP address, but a default-gateway cannot be assigned to the Service-port interface. Static routes can be defined in the WLC for remote network access to the Service-port. The Service-port is typically reserved for out-of-band management in the event of a network failure. It is also the only port that is active when the controller is in boot mode. The physical service port is a copper 10/100 Ethernet port and is not capable of carrying 802.1Q tags so it must be connected to an access port on the neighbor switch.

The Virtual Interface is used to support mobility management, DHCP relay, and embedded layer 3 security like guest web authentication and VPN termination. The Virtual Interface must be configured with an unassigned and unused gateway IP address. A typical virtual interface is “1.1.1.1”. The Virtual Interface address will not be pingable and should not exist in any routing table in your network. If multiple WLCs are configured in a mobility group, the Virtual Interface IP address must be the same on all WLC devices to allow seamless roaming.

(Reference: http://www.cisco.com/en/US/docs/wireless/technology/controller/deployment/guide/dep.html)

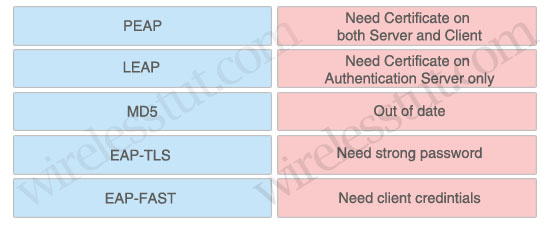

Question 2 (notice: we haven’t had enough information about this question yet, but it is something like this)



Answer:

+ PEAP: Need Certificate on Authentication Server only

+ LEAP: Out of date

+ EAP-FAST: Need client credential

+ EAP-MD5: Need strong password

+ EAP-TLS: Need Certificate on both Server and Client

Explanation

* EAP-MD5: MD5-Challenge requires username/password, and is equivalent to the PPP CHAP protocol [RFC1994]. This method does not provide dictionary attack resistance, mutual authentication, or key derivation, and has therefore little use in a wireless authentication enviroment.

* Lightweight EAP (LEAP): A username/password combination is sent to a Authentication Server (RADIUS) for authentication. Leap is a proprietary protocol developed by Cisco, and is not considered secure. Cisco is phasing out LEAP in favor of PEAP.

* EAP-TLS: Creates a TLS session within EAP, between the Supplicant and the Authentication Server. Both the server and the client(s) need a valid (x509) certificate, and therefore a PKI. This method provides authentication both ways.

*EAP-FAST: Provides a way to ensure the same level of security as EAP-TLS, but without the need to manage certificates on the client or server side. To achieve this, the same AAA server on which the authentication will occur generates the client credential, called the Protected Access Credential (PAC).

* Protected EAP (PEAP): Uses, as EAP-TTLS, an encrypted TLS-tunnel. Supplicant certificates for both EAP-TTLS and EAP-PEAP are optional, but server (AS) certificates are required. Developed by Microsoft, Cisco, and RSA Security, and is currently an IETF draft.
